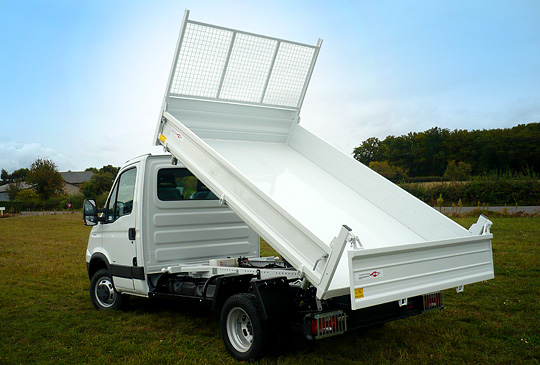

Tippers and Dropsides for commercial vehicles from 3.5t to 7.5t

Steel ou aluminium three way tipper

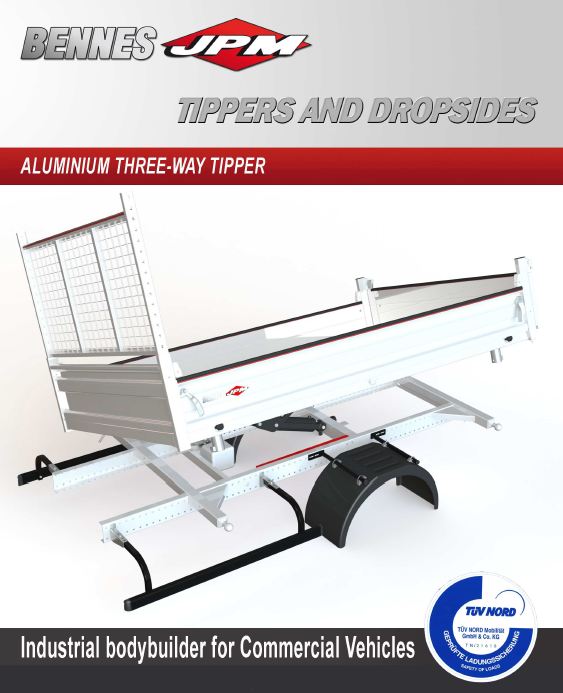

ALUMINIUM THREE-WAY-TIPPER

BODY

- Platform in aluminium profile 5083 H111, 4 mm thick, with reinforcements and tubular side members

- Sideboards in massive aluminium profile with ribbed reinforcements, 2.8 mm thick, 400 mm high, fold-down, removable and interchangeable

- Locking-grips integrated in sideboards, available with double safety system

- Rubber buffer stops in sideboards and rear door hinges, shock absorbing

- In platform integrated lashing points, according to DIN EN 12640, 800daN

- Removable and self-adjusting rear corner pillars in steel, cone-shaped, with connecting system and hot-dipped galvanized

- Aluminium bulkhead, welded, 450 mm high

- Aluminium plank gantry, removable

- Rear door in aluminium, 2.8 mm thick, 450 mm high, automatic opening

- Predisposed sideboard extension gusset plates

- Polypropylene mudguards, black, including cataphoretic dip-coating mudguard brackets

- Side underrun protection in aluminium, black coated, certified according to safety standards

- Geomet treated bolts (5 times more resistant than galvanizing)

SUBFRAME

- Aluminum subframe, 6 mm thick

- Drilled side members, screwable, on vehicle chassis

- Tipping through tipping hoist with compass system

- Electro pump unit with cover, perfect protection, 3L oil tank, pressure : 320 BAR

- Remote control in drivers'cab, up/down butto,

SAFETY

- Safety solenoid valve on cylinder

- Circuit breaker 1.600 watt

- Safety strut

- Tipping through shoring on ball bearings, equipped with foolproof system

FINISH

- Coated kit has total coating thickness of 120 µm : shot blasting + polyester top coat

- Untreated kit

WEIGHT OF KIT

- 3.200 mm : 440 kg

- 4.000 mm : 520 kg

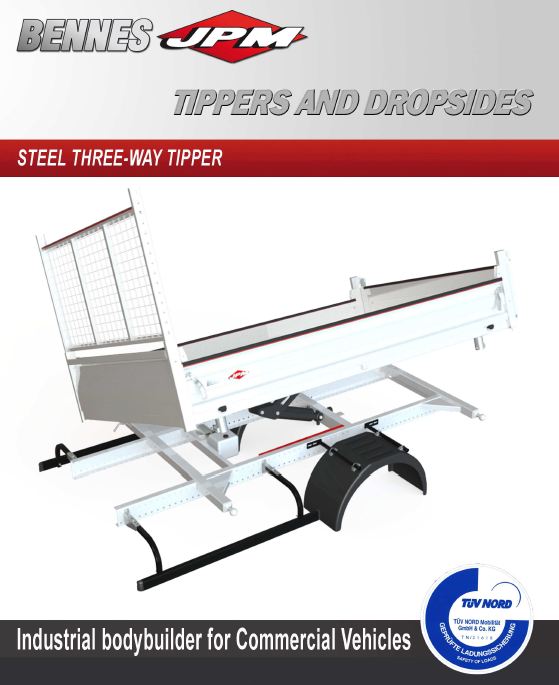

STEEL THREE-WAY-TIPPER

BODY

- Platform in steel profile HX500, 3 mm thick, with reinforcements and tubular side members

- Outer frame adapted to strap tension belts

- Double-walled sideboards in steel S355, 2 mm thick, non-stop laser welded, 350 mm high, fold-down, removable and interchangeable. Smooth steel profiles perfect for advertising

- Locking-grips integrated in sideboards, available with double safety system

- In platform integrated lashing points, according to DEN EN 12640, 800 daN

- Removable and self-adjusting rear corner pillers, cone-shaped, with connecting system and hot-dip galvanized

- Rubber buffer stops on sideboard and rear door hinges, shock absorbing

- Steel bulkhead S355, welded, 2 mm thick, 450 mm high

- Steel wire mesh gantry, 4 mm, removable and hot-dip galvanized

- Rear door in steel S355, 2 mm thick, 450 mm high, automatic opening

- Predisposed sideboard extension gusset plates

- Polypropylene mudguards, black, including cataphoretic dip-coating mudguard brackets

- side underrun protection in aluminium, black coated, certified according to safety standards

- Geomet treated bolts (5 times more resistant than galvanizing)

SUBFRAME

- Steel subframe S355, 4 and 5 mm thick

- Drilled side members, screwable on vehicle chassis

- Tipping through tipping hoist with compass system

- Electro pump unit with cover, perfect protection, 3L oil tank, pressure : 320 bar

- Remote control in drivers'cab, up/down button

SAFETY

- Safety slenoid valve on cylinder

- Circuit breaker 1.600 watt and safety strut

- Tipping through shoring on ball bearings, equipped with foolproof system

FINISH

- Total coating thickness 120µm/1.200 h salt spray

- Shot-blasting + anticorrosive coating + polyester top coat applied separately on each components

- Seals between non seam-welded compenents

WEIGHT OF KIT

- 3.200 mm : 662 kg

- 4.000 mm : 830 kg
